Products Name	Custom Machined Biopsy Puncture Needle Component with Plastic Mount Base - Built to Print
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
Meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
Size	3G-32G or Customized
LOGO	Can be customized according to your drawing
Samples	Usually provide 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

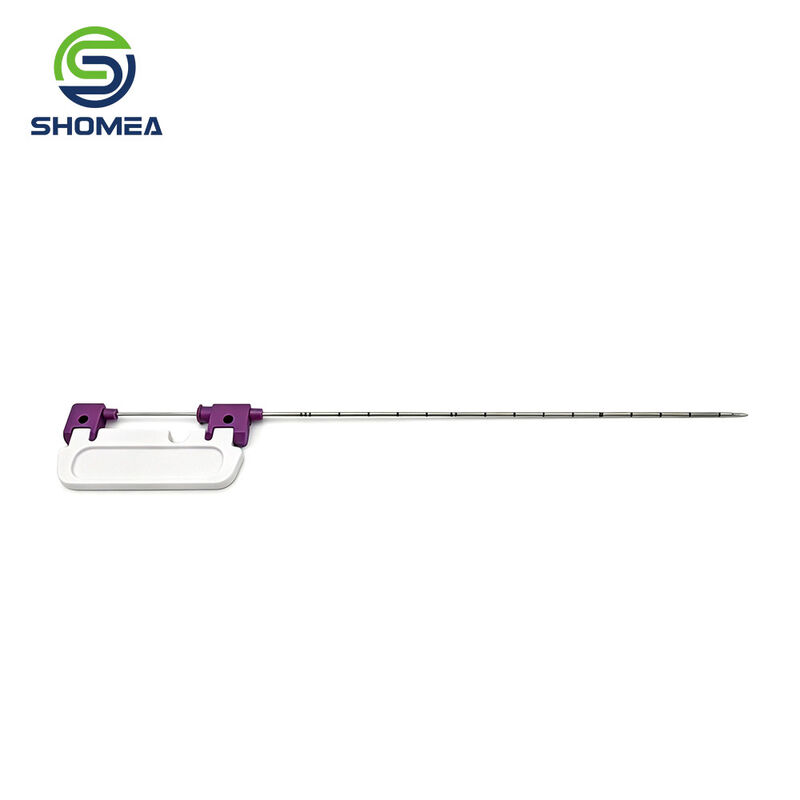

Custom Machined Biopsy Puncture Needle Component with Plastic Mount Base - Built to Print

Product Advantages:

Material Safety: Medical-Grade Stainless Steel with Excellent Biocompatibility

Structural Design: Dual-Needle Synergy + Scale Navigation for Precise Operation

Surgical Adaptation: Dedicated to Meniscus Diagnosis/Treatment, Ideal for Arthroscopic Surgery

Operational Efficiency: Ergonomic Design Shortens Surgical Time

FAQ:

Q1: What material is this biopsy needle tube constructed from and are there alternative material options?
A1: The main needle tube is manufactured from medical-grade stainless-steel which delivers reliable biocompatibility for biopsy sampling. We can also support alternative material selection such as nickel-titanium alloy if your clinical application puts forward special performance requirements.

Q2: Could we make custom adjustments including needle outer diameter, total length and tip geometry for this biopsy needle?
A2: Absolutely yes. We fully support customizing gauge size, overall length, tip cutting style and graduation-mark spacing. You can provide technical drawings or physical samples, our engineering team will evaluate and implement all your customized technical requirements.

Q3: What processing method is adopted for the depth graduation marks on the needle surface and will these marks wear off in usage?
A3: All depth graduation marks are processed by professional laser-etching technology. The marks embed into the tube surface instead of simple surface printing. They maintain high definition and strong wear-resistance during repeated clinical operations.

Q4: Do you supply the complete set including plastic locking base same as shown in the reference picture, or only bare metal needle cannula?
A4: We can provide two supply modes for your selection. We can deliver only the precision metal needle tube alone, or finish full assembly with matched plastic locking base according to your drawing requirements. You just need to clarify your assembly demand in advance.

Q5: What is your product delivery condition, do you supply final sterilized finished biopsy needle products? What about sample production cycle?
A5: Our delivered items are precision-machined unsterilized medical components, sterilization treatment needs to be completed on your side. For custom samples, the general lead-time ranges from 7-12 working days, and the exact cycle will be confirmed after finalizing all technical parameters.

Disclaimer

Shenzhen Shomea Hardware Products Co., Ltd. is a precision metal components manufacturer, not a medical device distributor. All parts shown on this page are custom machined according to the buyer's drawings, samples and specifications.

We do not sell finished medical devices, sterile devices, IVD reagents or surgical instruments. All components are supplied non-sterile and unfinished.

The purchaser, as the medical device manufacturer or equipment brand owner, is solely responsible for device design validation, biocompatibility evaluation, sterilization validation, labeling and regulatory approval of the finished medical device.
