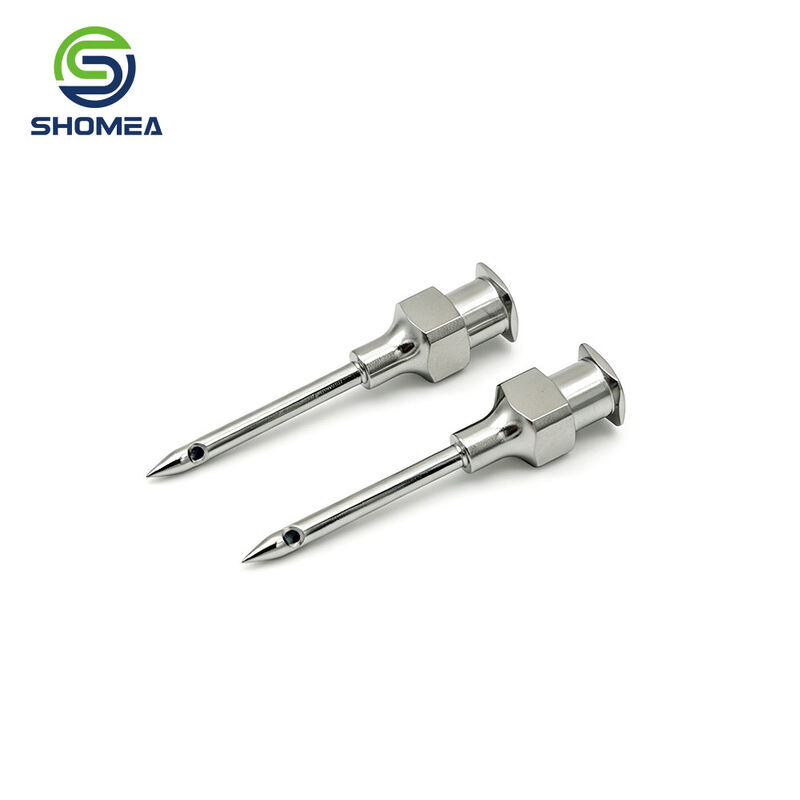

Medical Grade Stainless Steel Side Port Needle with Luer Lock

Brand Name:	SHOMEA
Model Number:	OEM
MOQ:	10pcs
Price:	1-20USD
Packaging Details:	Polybag, Carton, Wooden case or According to your request
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Certification:

ISO13485

Supply Ability:

100000pcs/ month

Product Description

Products Name	Medical Grade Stainless Steel Side Port Needle with Luer Lock
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
Meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
Size	3G-32G or Customized
LOGO	Can be customized according to your drawing
Samples	Usually provide 5-10pcs samples for testing before mass production
Delivery Time	Usually 5-25days or according to quantity

Medical - grade stainless steel, excellent biocompatibility,safe and no risks.

Outstanding precision and craftsmanship, the tolerance of the reducing transition section is ≤±0.01mm

Strong corrosion resistance to body fluids, size and performance remain stable

FAQ:

Question: What accuracy (tolerance, concentricity) can the reducing pipe achieve? Will it affect instrument assembly?

Answer: Through CNC precision machining, the diameter tolerance of the reducing transition section can be controlled within ±0.01mm, and the concentricity of the tube body is ≤0.005mm. The high - precision design ensures close fitting with matching instruments, avoiding looseness, leakage or assembly jamming, and fully meeting the micron - level assembly requirements of minimally invasive surgery and implantable instruments.

Question: In the medical disinfection environment (such as high - temperature steam, ethylene oxide, irradiation), will the tube corrode or deform?

Answer: 316L stainless steel itself has excellent corrosion resistance, and can withstand common medical disinfection methods such as high - temperature steam sterilization (121℃/134℃), ethylene oxide (EO) sterilization, and gamma irradiation sterilization. After long - term disinfection cycle testing, the tube will not rust, deform or age, ensuring the long - term stable operation of medical equipment.

Question: Can the outer diameter, inner diameter, length, and chamfer angle of the product be customized? What is the minimum order quantity?

Answer: We support full - specification customization: outer diameter (φ0.5mm - φ50mm), inner diameter (opened according to demand), length (1mm - 500mm), chamfer angle (15° - 60° optional, non - standard customization is also available). The minimum order quantity (MOQ) is usually 100 pieces. If you have an urgent small - batch demand, you can contact the sales team to evaluate whether small - batch trial production is supported.

Question: How is the surface finish of the tube? Will it retain impurities that affect medical cleanliness?

Answer: The product surface is polished by mirror polishing or matte treatment, with a roughness Ra≤0.8μm (can be increased to Ra≤0.4μm on request). There is no oil, no oxide scale, and no machining debris on the surface, meeting the cleanliness requirements of the medical industry. At the same time, the dense surface of the stainless steel material is not easy to adsorb bacteria or pollutants, which is convenient for subsequent medical cleaning (such as ultrasonic cleaning, high - pressure water gun flushing).
