Small-diameter Tube Processing
Created with Pixso.

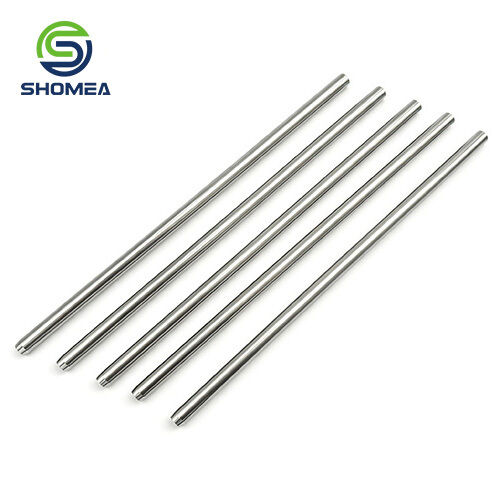

Custom Machined MKA Chamfered Stainless Steel Tube - Built to Print

Custom Machined MKA Chamfered Stainless Steel Tube - Built to Print

Brand Name: NA
Model Number: OEM
MOQ: Based on customer requirements
Price: NA
Packaging Details: Polybag, Carton, Wooden case or According to your request
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Detail Information
Place of Origin:
CN
Certification:
ISO13485
Material:
Medical Grade Stainless Steel
Supply Ability:
100000pcs/ month
Product Description

Custom Machined MKA Chamfered Stainless Steel Tube - Built to Print

Products Name

Custom Machined MKA Chamfered Stainless Steel Tube - Built to Print
Material Medical Grade Stainless Steel
Needle Type Fine Puncture Needle
Needle Tip Beveled Tip
Gauge  18G–25G (Custom Available)
Length 90–250 mm (Custom Available)
Connection Luer Hub
OEM/ODM Available
LOGO Can be customized according to your drawing
Samples Usually provide 5-10pcs samples for testing before mass production
Delivery Time Usually 30-45 days or according to quantity

Custom Machined MKA Chamfered Stainless Steel Tube - Built to Print

Product Advantages:

  • Strict manufacturing tolerance up to ±0.02mm, stable dimensional consistency for precise assembly matching.
  • Precise MKA end chamfer processing, burr‑free end surface, smooth for easy insertion and fitting operation.
  • Electropolished inner and outer surface, no residual sharp fragments, suitable for medical and industrial assembly scenarios.
  • Uniform wall thickness of straight tube, stable mechanical performance for long‑term service.
  • Support custom outer diameter, wall thickness, total length and chamfer parameters, fully realize OEM & ODM personalized processing.
FAQ:


Q: What material grades are available for this MKA chamfered stainless steel tube?
A: We mainly produce 304 and 316 stainless steel tubes. Other special metal materials can be processed according to your drawing requirements.


Q: Can we customize tube size and MKA chamfer parameters?
A: Yes, outer diameter, wall thickness, total length and chamfer specification can all be customized based on customer drawings or physical samples.


Q: What is your standard dimensional tolerance for chamfered tube products?
A: Our standard production tolerance is ±0.02mm. Higher precision requirements can be achieved after drawing technical confirmation.


Q: Will there be burrs after MKA chamfer machining?
A: We adopt precision chamfering plus post‑deburring treatment. The chamfer end remains smooth without burrs or sharp edges.


Q: Do you provide sterilization service for this MKA chamfered tube?
A: These are precision metal semi‑finished parts. We do not offer sterilization service. Customers shall complete sterilization before final end‑use application.



Disclaimer

Shenzhen Shomea Hardware Products Co., Ltd. is a precision metal components manufacturer, not a medical device distributor. All parts shown on this page are custom machined according to the buyer's drawings, samples and specifications.

We do not sell finished medical devices, sterile devices, IVD reagents or surgical instruments. All components are supplied non-sterile and unfinished.

The purchaser, as the medical device manufacturer or equipment brand owner, is solely responsible for device design validation, biocompatibility evaluation, sterilization validation, labeling and regulatory approval of the finished medical device.
