Custom Machined Side Hole Needle Component with Sandblasted Tail - Built to Print

Brand Name:	SHOMEA
Model Number:	OEM
MOQ:	10pcs
Packaging Details:	Polybag, Carton, Wooden case or According to your request
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Certification:

ISO13485

Material:

Medical Grade Stainless Steel

Application:

Fine Needle Aspiration / Biopsy / Drainage

Supply Ability:

100000pcs/ month

Product Description

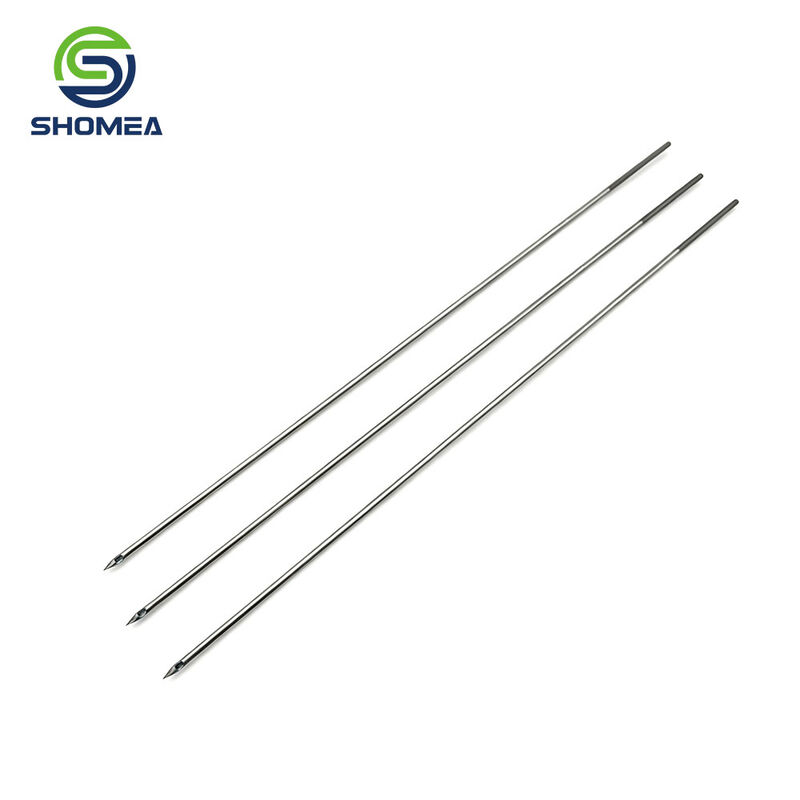

Custom Machined Side Hole Needle Component with Sandblasted Tail - Built to Print

Products Name	Custom Machined Side Hole Needle Component with Sandblasted Tail - Built to Print
Material	Medical Grade Stainless Steel
Needle Type	Fine Puncture Needle
Needle Tip	Beveled Tip
Gauge	18G–25G (Custom Available)
Length	90–250 mm (Custom Available)
Connection	Luer Hub
OEM/ODM	Available
LOGO	Can be customized according to your drawing
Samples	Usually provide 5-10pcs samples for testing before mass production
Delivery Time	Usually 30-45 days or according to quantity

Custom Machined Side Hole Needle Component with Sandblasted Tail - Built to Print

Product Advantages:

Pencil point tip provides smooth insertion and reduces resistance during penetration.
Side hole outlet helps deliver or extract fluid while reducing tip blockage risk.
Sandblasted tail creates a non‑slip surface for more reliable handling and assembly.
Electropolished stainless steel cannula offers smooth inner and outer surfaces with low friction.
Needle length, side hole position, tip angle and tail finish can be customized according to drawings or samples.

FAQ:

Q1: What stainless steel grades are available for this customized side hole needle?
A1: Medical grade 304 and 316 stainless steel are standard tube materials. Batch material test certificates can be provided for medical device registration and quality traceability. Special alloy materials are acceptable upon your request.

Q2: What dimensional tolerances can you achieve for the cannula, side hole and sandblasted tail?
A2: Key dimensions including outer diameter, inner bore and wall thickness can reach precision tolerance up to ±0.02mm. Side hole position and tail finish are also controlled according to your drawing requirements.

Q3: Can secondary processes such as side hole drilling, pencil tip grinding and sandblasting be completed in‑house?
A3: Yes, side hole drilling, pencil point tip grinding, sandblasting and surface polishing are all completed in‑house, effectively avoiding quality risks brought by external subcontracting.

Q4: Are these sandblasted tail side hole needles supplied sterile? Which sterilization methods are compatible?
A4: Standard delivery is non‑sterile finished components without sterilization service. This needle supports EO ethylene oxide, gamma irradiation and autoclave steam sterilization for your downstream processing.

Q5: What are sample and bulk production lead‑times? What inspection documents can you provide?
A5: Custom sample lead‑time is 7‑12 working days according to structural complexity. Bulk production lead‑time will be confirmed after drawing approval. Dimension inspection reports and batch traceability documents can be offered as requested.

Disclaimer

Shenzhen Shomea Hardware Products Co., Ltd. is a precision metal components manufacturer, not a medical device distributor. All parts shown on this page are custom machined according to the buyer's drawings, samples and specifications.

We do not sell finished medical devices, sterile devices, IVD reagents or surgical instruments. All components are supplied non-sterile and unfinished.

The purchaser, as the medical device manufacturer or equipment brand owner, is solely responsible for device design validation, biocompatibility evaluation, sterilization validation, labeling and regulatory approval of the finished medical device.
