Custom Machined Double Slotted Needle Component with Metal Base - Built to Print

Brand Name:	NA
Model Number:	OEM
MOQ:	Based on customer requirements
Packaging Details:	Polybag, Carton, Wooden case or According to your request
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Certification:

ISO13485

Supply Ability:

100000pcs/ month

Product Description

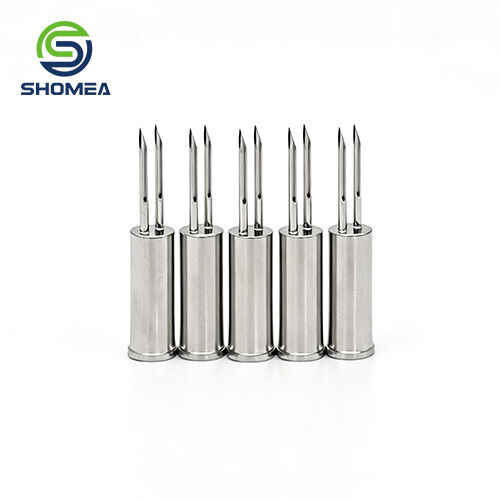

Custom Machined Double Slotted Needle Component with Metal Base - Built to Print

Products Name	Custom Machined Double Slotted Needle Component with Metal Base - Built to Print
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
Meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
Size	3G-32G or Customized
LOGO	Can be customized according to your drawing
Samples	Usually provide 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Custom Machined Double Slotted Needle Component with Metal Base - Built to Print

Product Advantages:

Made of high quality stainless steel material, outstanding mechanical strength and corrosion resistance for detection and sampling equipment.
Dual parallel slotted tip design realizes dual channel operation, improves working efficiency for sampling or sensing application.
Integral formed metal base ensures good coaxiality of double prongs, stable installation without offset during equipment operation.
Precision laser or mechanical slot processing, clean slot edge without burr, avoids scratch to measured object.
Prong length, slot dimension, prong gap and base outline can be fully customized according to drawing or physical sample.

FAQ:

Q1: What stainless steel grades are available for this double slotted needle with base?
A1: SUS304 and SUS316L are regular options. Material certificate can be supplied upon your request.

Q2: Can we adjust spacing between two prongs of the needle?
A2: Yes. Prong gap, prong length and slot size are all customizable. Please mark exact parameters on technical drawing.

Q3: What dimensional tolerance can you provide for assembled double needle?
A3: Typical tolerance reaches ±0.02mm for prong position and outer dimension, specific value depends on product size.

Q4: Is sample order acceptable for equipment performance verification?
A4: Sample production is supported. Sample cost and lead time relate to base shape, slot cutting and prong dimension. Please send drawing for precise quotation.

Q5: Can surface treatment like electrolytic polishing be applied on this assembly part?
A5: Electrolytic polishing or mechanical polishing is available for whole assembly to meet surface roughness requirement.

Disclaimer

Shenzhen Shomea Hardware Products Co., Ltd. is a precision metal components manufacturer, not a medical device distributor. All parts shown on this page are custom machined according to the buyer's drawings, samples and specifications.

We do not sell finished medical devices, sterile devices, IVD reagents or surgical instruments. All components are supplied non-sterile and unfinished.

The purchaser, as the medical device manufacturer or equipment brand owner, is solely responsible for device design validation, biocompatibility evaluation, sterilization validation, labeling and regulatory approval of the finished medical device.
