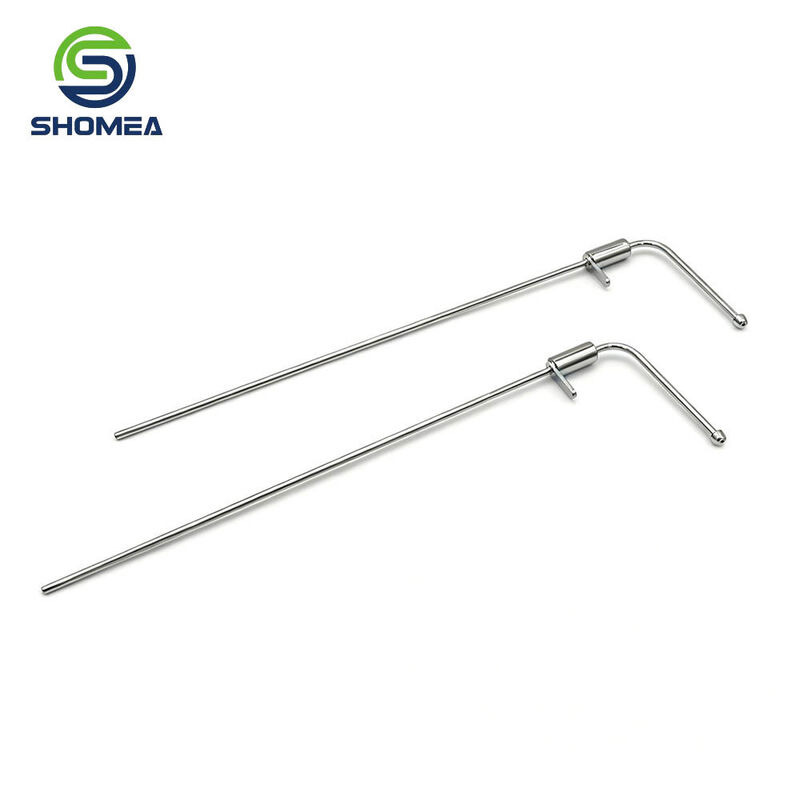

OEM Machined Stainless Steel Analytical Bent Tubing Component - Built to Print

Product Advantages:

Material & Machining

Manufactured from 316L stainless steel with Swiss CNC turning and centerless grinding. Corrosion resistant for long term use in analytical and industrial fluid systems.

Precision Tip

Finely polished tip with surface finish below Ra 0.2. Ensures smooth sample entry and minimal residue buildup inside the tubing.

Mounting & Fixing

 Equipped with knurled adjustment and flange fixing assemblies. Allows flexible position adjustment and secure mounting on analytical equipment.

Seamless Tube Bore

Precision seamless tube manufacturing delivers a smooth inner bore free of dead corners. Reduces cross contamination between sample runs.

FAQ:

Q1: What stainless steel grades are available for this bent tip analytical sampling tubing?
A1: SUS304 and SUS316L are optional. SUS316L is recommended for long term contact with biochemical reagents and repeated cleaning cycles.

Q2: Can I adjust bending angle, ball end size and total tubing length?
A2: Yes, full OEM customization is supported. Bending angle, ball diameter, locating tab dimension and overall length can be manufactured strictly according to your CAD drawings.

Q3: What is the function of the locating tab on this sampling tubing?
A3: The locating tab acts as a positioning stop, fixing the tubing assembly position and preventing rotation and displacement during analyzer operation.

Q4: Why is a round ball end used for the sampling tip?
A4: The smooth ball shaped end prevents scraping the sample container inner wall, avoiding debris contamination and protecting container components.

Q5: Can you supply test samples for analyzer matching verification before bulk production?
A5: Samples are available. Please provide complete drawing specifications and sample quantity, and we will arrange sample production after technical confirmation.

Q6: Are these components sterile and ready for clinical use?
A6: No. All parts are supplied as non-sterile, unfinished machined components. They are sold only to qualified equipment manufacturers for further assembly, validation and integration. The finished device design validation, biocompatibility evaluation, sterilization, labeling and regulatory approval are the buyer's responsibility.

Disclaimer

Shenzhen Shomea Hardware Products Co., Ltd. is a precision metal components manufacturer, not a medical device distributor. All parts shown on this page are custom machined according to the buyer's drawings, samples and specifications.

We do not sell finished medical devices, sterile devices, IVD reagents or surgical instruments. All components are supplied non-sterile and unfinished.

The purchaser, as the medical device manufacturer or equipment brand owner, is solely responsible for device design validation, biocompatibility evaluation, sterilization validation, labeling and regulatory approval of the finished medical device.
