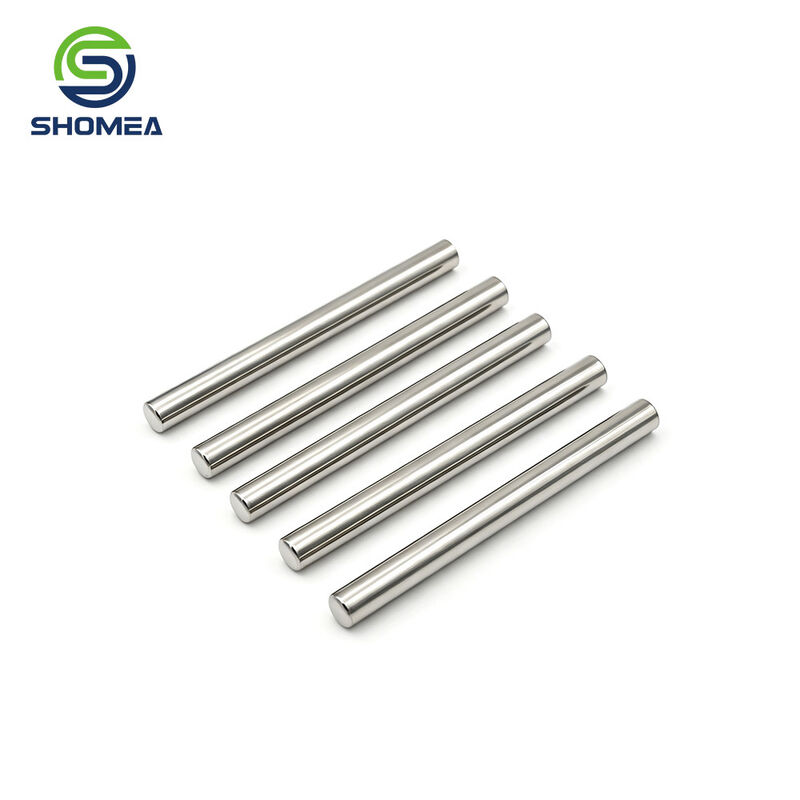

SHOMEA Medical - Grade Stainless Steel Sealed Tube with Flat - Head

SHOMEA Medical - Grade Stainless Steel Sealed Tube with Flat - Head

Brand Name: SHOMEA
MOQ: 10pcs
Price: 1-20USD
Packaging Details: Polybag, Carton, Wooden case or According to your request
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Detail Information
Place of Origin:
CN
Certification:
ISO13485
Supply Ability:
100000pcs/ month
Product Description
Products Name  SHOMEA Customized Medical - Grade Stainless Steel Sealed Tube with Flat - Head
Material Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment  Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter  0.25-15mm
Tube wall Thickness  0.05-3mm
Meta Base Male and Female thread
Tolerance  OD/ID±0.02mm L±0.05mm or According to Drawing
Size 3G-32G or Customized
LOGO Can be customized according to your drawing
Samples Usually provide 5-10pcs samples for testing before mass production
Delivery Time usually 5-25days or according to quantity


Medical - grade stainless steel, excellent biocompatibility



Precision flat - head sealing process, with a flat and smooth end face without burrs


Strong Corrosion Resistance


High Precision & Stable Size




FAQ:

Question: In the medical disinfection environment (such as high - temperature steam, ethylene oxide, irradiation), will the tube corrode or deform?

Answer:​ 316L stainless steel itself has excellent corrosion resistance, and can withstand common medical disinfection methods such as high - temperature steam sterilization (121℃/134℃), ethylene oxide (EO) sterilization, and gamma irradiation sterilization. After long - term disinfection cycle testing, the tube will not rust, deform or age, ensuring the long - term stable operation of medical equipment.


Question: Can the outer diameter, inner diameter, length, and chamfer angle of the product be customized? What is the minimum order quantity?

Answer:​ We support full - specification customization: outer diameter (φ0.5mm - φ50mm), inner diameter (opened according to demand), length (1mm - 500mm), chamfer angle (15° - 60° optional, non - standard customization is also available). The minimum order quantity (MOQ) is usually 100 pieces. If you have an urgent small - batch demand, you can contact the sales team to evaluate whether small - batch trial production is supported.


Question: How is the surface finish of the tube? Will it retain impurities that affect medical cleanliness?

Answer:​ The product surface is polished by mirror polishing or matte treatment, with a roughness Ra≤0.8μm (can be increased to Ra≤0.4μm on request). There is no oil, no oxide scale, and no machining debris on the surface, meeting the cleanliness requirements of the medical industry. At the same time, the dense surface of the stainless steel material is not easy to adsorb bacteria or pollutants, which is convenient for subsequent medical cleaning (such as ultrasonic cleaning, high - pressure water gun flushing).
