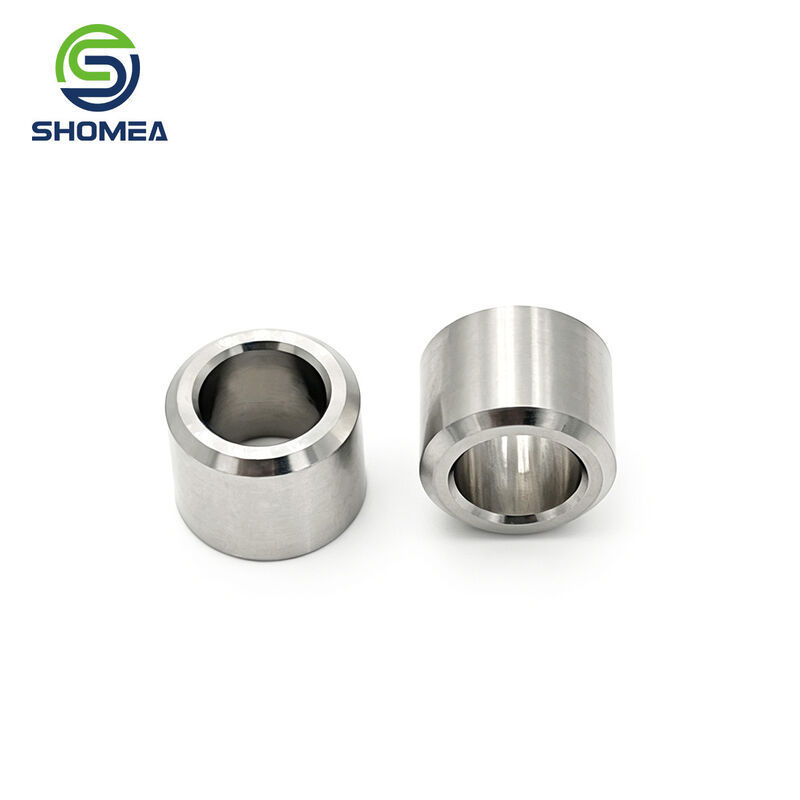

SHOMEA High-Precision Stainless Steel Bushing with CNC Turning

316L/304 stainless steel with excellent corrosion resistance, high temperature tolerance, and biocompatibility

Precision Swiss-type CNC machining ensures micron-level accuracy

Precision grinding and polishing treatment achieves surface roughness Ra 0.4-0.8μm

Compact cylindrical design with positioning step for easy installation

FAQs:

Q1: What are the main applications of this stainless steel sleeve processed by the sliding head lathe?

A: This stainless steel sleeve is mainly used for axial positioning, bearing support, friction-reducing guidance and component spacing in automation equipment, robotic joints, medical devices, and hydraulic/pneumatic components. It can serve as wear-resistant bushing, isolation sleeve or precision spacer.

Q2: Can special treatments be applied to the surface?

A: We can provide natural passivation, electropolishing, nickel plating, chrome plating or blackening treatment to meet specific anti-corrosion grades or appearance requirements.

Q3: How to ensure the concentricity of parts processed by a Swiss-type lathe?

A: Using Swiss-type lathe spindle + C-axis indexing + power tool system, the workpiece completes all processes (turning, milling, drilling) in one clamping, effectively avoiding eccentric errors from secondary clamping, ensuring concentricity between inner bore and outer diameter ≤0.01mm.
