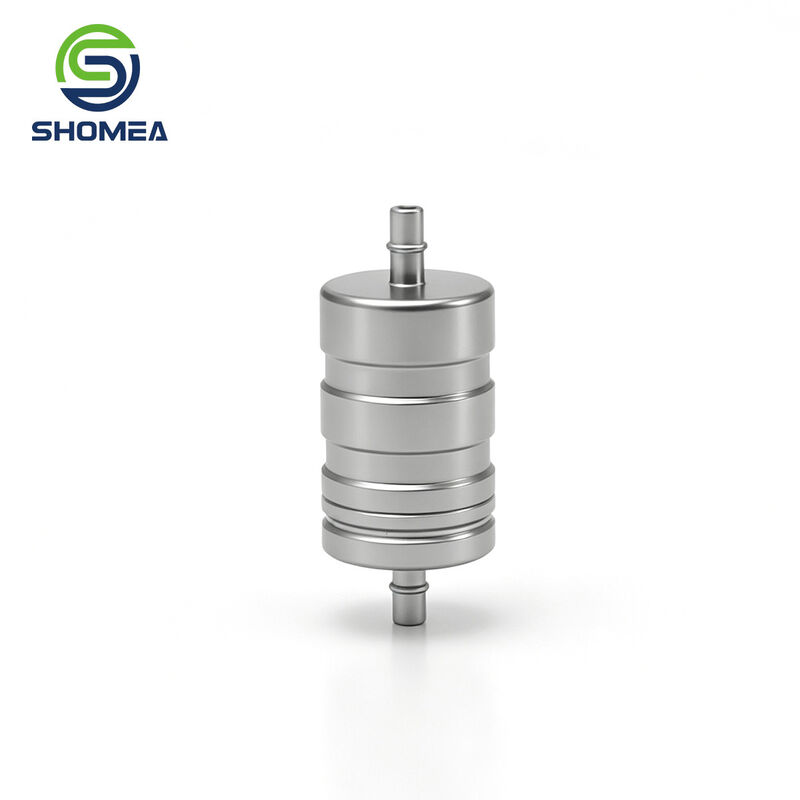

SHOMEA Customized Stainless Steel Micro Tube Fitting

• High-Precision CNC Swiss-type Machining for Superior Dimensional Stability

 ​

• 316L Stainless Steel Construction for Excellent Corrosion Resistance

 ​

• Superior Surface Finish Minimizing Fluid Resistance

 ​

• Multi-Stage Annular Groove Design Enhancing Structural Strength and Functional Expansion

 ​

• Precision-Sealed Connections with Excellent Leak-Proof Performance

FAQs:

Q: What is the minimum/maximum outer diameter and length tolerance? Do you support non-standard customization?

A: With Swiss-type CNC machining, standard OD tolerance is within ±0.01mm​ and length tolerance within ±0.02mm. Fully customizable including OD (φ6-φ30mm), total length, groove spacing, fitting specifications (for φ4-φ12mm tubes), and end-face chamfering. Simply provide 2D drawings or samples for prototyping.

Q: Is surface blackening/passivation standard? Can you perform electropolishing?

A: Standard delivery includes electropolishing​ to achieve a mirror finish with Ra≤0.4μm, enhancing corrosion resistance and cleanliness. Special surface treatments (e.g., hard anodizing, PTFE coating) are available upon request at an additional cost.

Q: What is the specific function of the multiple annular grooves? Are they threads or decorative?

A: The grooves primarily serve as O-ring sealing grooves​ or anti-slip knurling, ensuring reliable pneumatic/hydraulic sealing with mating parts (not threads). If threaded, specifications (e.g., M5, M6, G1/8") will be clearly indicated.
