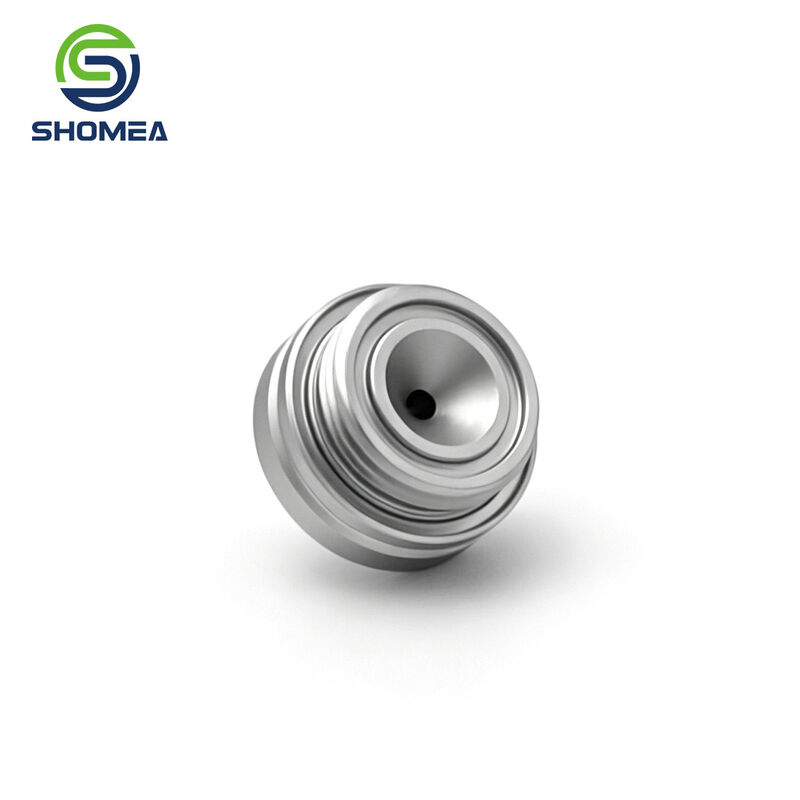

SHOMEA Customized Stainless Steel Micro-diameter Precision Fitting

• Ultimate Machining Precision and Superior Surface Quality

• High-quality medical-grade stainless steel

• Integrated Formation of Complex Irregular Structures

• Utilizing advanced Swiss-type CNC and turning-milling composite technology, micron-level repeatability is achieved

FAQs:

Q1: What is the core manufacturing process of this product?

A:​ This product is entirely manufactured using Swiss-type CNC machining. This process is particularly suitable for slender parts and high-precision micro-components, enabling micron-level dimensional control to ensure concentricity and surface finish of every step, thread, and hole.

Q2: What level of precision can this part achieve?

A:​ Thanks to the high-rigidity spindle and precision servo system of the Swiss-type machine, the dimensional tolerance of this part can typically be stably controlled within ±0.01mm, and for critical mating areas, it can even reach ±0.005mm. The surface roughness (Ra) can be as low as 0.4μm, meeting the requirements of most precision fluid control devices.

Q3: In which industries or equipment is this type of connector mainly used?

A:​ Due to its high precision, high cleanliness, and corrosion resistance, this product is widely used in:

• Medical Devices: Such as hemodialysis equipment, infusion pumps, monitors, and endoscope systems.

• Biopharmaceuticals: Such as chromatography systems, filling equipment, and fluid line connections.

• High-end Laboratory Instruments: Such as HPLC and GC.

• Food & Beverage: Such as coffee machines and precision lines in beer brewing equipment.

Q4: Do you support non-standard customization? What is the minimum machining diameter?

A:​ Yes, we strongly support non-standard customization.​ We can perform full-size personalized design based on customer-provided 2D/3D drawings or samples. The advantage of Swiss-type machining lies in its small diameter capability; our routine minimum outer diameter can reach φ0.5mm​ while ensuring structural strength and precision.

Q5: What are the available surface treatment options?

A:​ The standard finish is as-machined/passivated, showcasing the natural metallic luster and corrosion resistance of stainless steel. Additionally, we offer electropolishing​ services to further enhance surface finish and cleanliness, especially suitable for medical and pharmaceutical industries. Other treatments like nickel plating or anodizing are available upon material evaluation.
