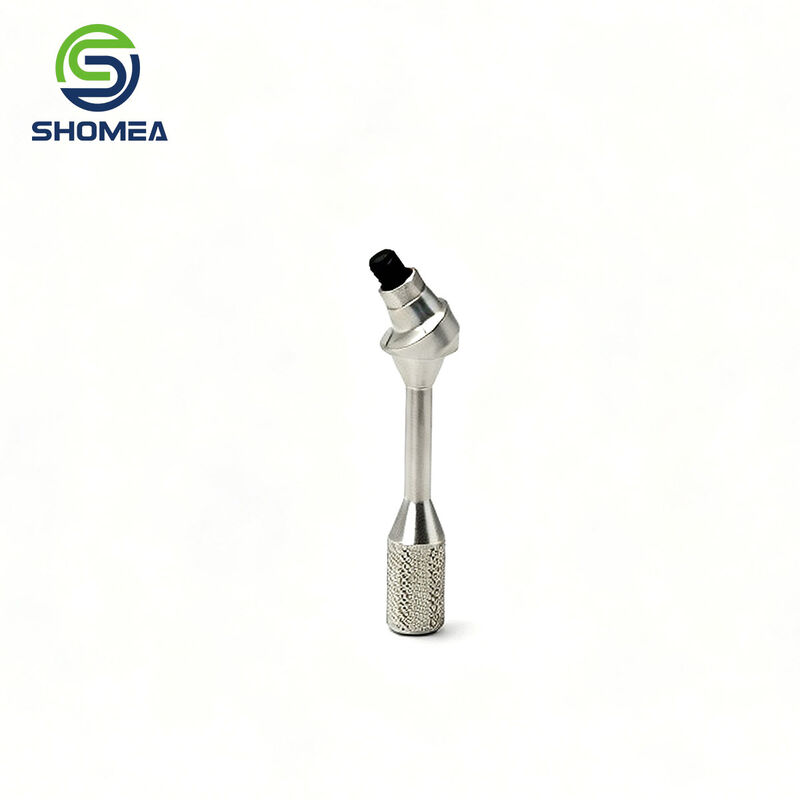

SHOMEA Customized Dental Angled Multi - Unit Abutment

• Medical-Grade TC4 Titanium Alloy Combines Biocompatibility & Mechanical Performance

• Precise Angle Adjustment, Suitable for Complex Cases

• Composite Structure: Integrated Design, Simplifying the Restoration Process

• Surface Treatment: Fine Processing + Biological Activity Optimization, Promoting Soft Tissue Attachment

• Long - term Stability: Anti - fatigue + Corrosion - resistant, Ensuring Restoration Service Life

• Wide Adaptability: Compatible with Mainstream Implant Systems, Expanding Clinical Applications

FAQs:

Q2: Why choose TC4 titanium alloy material? What are its advantages?

Answer:​ This product is manufactured from TC4 (Ti - 6Al - 4V) medical - grade titanium alloy, with the following advantages:

• Excellent biocompatibility: Non - toxic, non - sensitizing, and can coexist harmoniously with oral tissues (gingiva, bone tissue), reducing the risk of peri - implantitis and tissue rejection;

• Superior mechanical properties: Tensile strength ≥900MPa, strong fatigue resistance, maintaining structural stability under complex oral mechanical forces (such as masticatory force, occlusal impact force), avoiding deformation or fracture;

• Strong corrosion resistance: A stable oxide film can be formed on the surface of titanium alloy, resisting corrosion from oral saliva, food residues, etc., and extending service life;

• High processing precision: Micron - level precision can be achieved through precision CNC machining, ensuring accurate key dimensions such as angle and thread, and ensuring precise matching between the restoration and the implant.

Q3: What is the “angle adjustment range” of the angled multi - unit abutment? How to ensure angle accuracy?

Answer:​ The angle adjustment range of this product is usually 15° - 30° (specific to the model), and the angle accuracy is controlled within ±1°.

• Accuracy guarantee: Manufactured by a high - precision CNC machining center​ and fully inspected with a laser angle measuring instrument​ to ensure that the angle error of each abutment is strictly controlled within the standard range;

• Structural optimization: The angle adjustment slot/hole design has been verified by mechanical simulation and clinical practice​ to ensure structural stability after adjustment and no angle shift when stressed.

Q4: What clinical cases is the angled multi - unit abutment suitable for?

Answer:​ The angled multi - unit abutment is mainly suitable for the following clinical cases:

• Multi - implant - supported restoration: Such as fixed bridges, overdentures, requiring coordination of the angles of multiple implants to ensure occlusal balance;

• Free - end edentia: Single - implant restoration for free - end missing teeth, requiring angle adjustment to simulate the occlusal slope of natural teeth;

• Aesthetic zone restoration: Implantation in the anterior tooth region, requiring optimization of gingival morphology and restoration angle to enhance aesthetic effects;

• Poor implant placement angle: Such as tilted implantation, mesial/distal deviation, compensating the angle through the angled abutment to ensure smooth seating of the restoration.

Q7: What is the packaging and sterilization method of the product? Is customization supported?

Answer:​

• Packaging: Adopt sterile independent packaging​ (such as medical dialysis paper + plastic film) to ensure the product is not contaminated before use;

• Sterilization: After high - temperature and high - pressure steam sterilization (compliant with ISO 11135 standard) before leaving the factory, it can be directly used in clinical practice;

• Customization: Non - standard customization of parameters such as angle, diameter, thread specification​ is supported. Personalized production can be carried out according to customer requirements (such as specific implant systems, case requirements), and the customization cycle is generally 10 - 15 working days.
